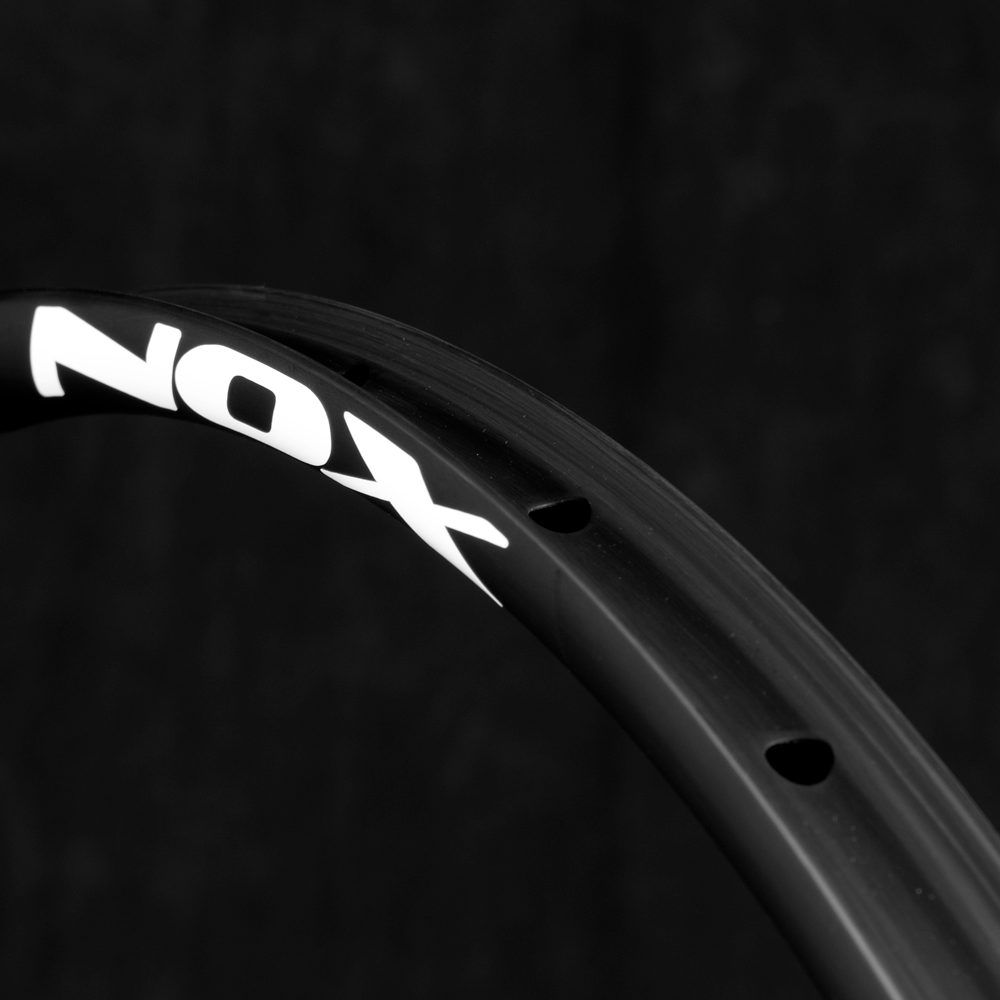

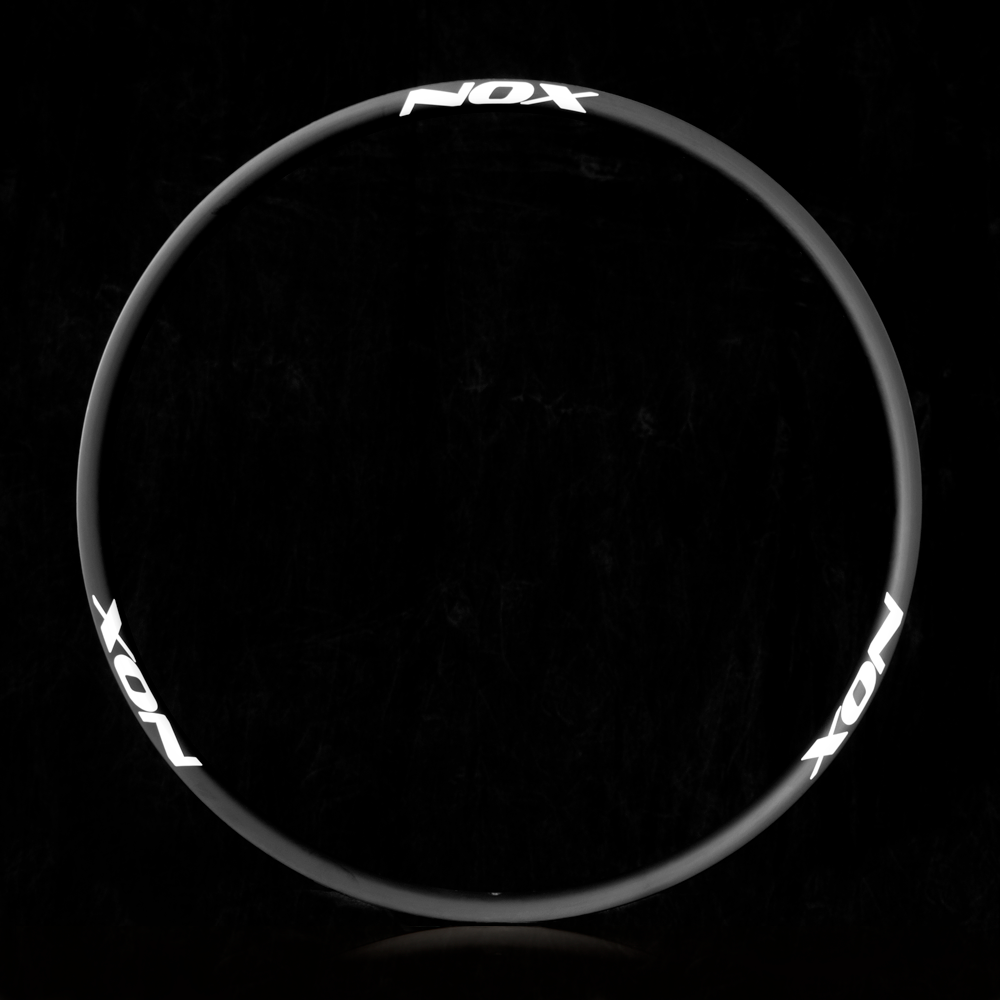

The Teocalli rim (affectionately called the Teo) is the ultimate trail bike rim for 650b bikes. Offering an ideal compromise of width (26mm internal) and low weight (350g) combined with our super strong 3mm wide Rockguard Hookless bead, it's the sweet spot that will fit many rider's style perfectly. At only 350g, it's tempting to compare this rim with other XC rims, but it was really designed as a tough trail rim that's light enough for the occasional race. Like all our rims, the Teo offers an abundance lateral stiffness, our trademark asymmetric design and best in the industry durability to rock strikes or other direct rim impacts. For every day riding, or if you do a bit of everything from trail riding, XC riding and an occasional XC race, you can't go wrong with the Teo.
We offer the Teocalli 275 as a single rim or a complete wheelset. Our wheelsets are handbuilt right here in Tennessee using only the best components; Sapim CX-Ray or Race spokes and DT Swiss alloy Pro Lock squorx nipples. Hub choices include Chris King, Industry Nine, Hope, DT Swiss and Project 321. To see a comparison of all our hubs check out the hub comparison chart. Wheel builds come with our TPP tape and tubeless valves installed. All wheelsets are built to order and it may take 4 weeks or more depending upon hub availability.
Wheels are handbuilt in Tennessee
Handbuilt wheelsets from $1,382 (DT350)
Most rims are in stock and ship in 1-3 days. Custom wheel builds take 4 weeks or more depending upon hub availability. Any cancelled complete wheelset orders are subject to a cancellation fee as high as 20% depending on if the wheel has been built. For pricing or to configure a wheelset, use the drop down menu below. We only recommend using tires intended for hookless rims on the Teocalli 275. Though the Teocalli can work safely with tires up to 2.6", the rim works best with tire widths ranging from 40mm-2.35". FREE SHIPPING ON WHEELSETS
Teocalli 275 Specifications
*Rim weights are +/- 10g **Wheel weights are with CX-Ray spokes with alloy nipples ***Recommended build tension is 120 kgf Please read the FAQ for other questions.
Weight Rim
350g*
Weight I9 Wheelset
1409g**
Weight Hope Wheelset
1486g**
Weight King Wheelset
1488g**
Weight DT 240S Wheelset
1394g**
Weight Project 321 Wheelset
1442g**
Weight DT 350 Wheelset
1461g**
Weight Onyx Wheelset
1677g**
ERD
560
Asymmetric Offset
2.6mm
Spoke Hole Drilling
Asymmetric, 5 deg
Max Tension
200 kgf***
Depth
22mm
Width
32mm external, 26mm internal
Hole Count
32, 28, 24 (custom order only)
Tubeless Ready
Yes
Finish
Satin Unidirectional Carbon
Tech Features
UniWeave™, RockGuard HL™, Anti-Burp Bump™
Rider Weight Limit
none
$479.00
